Fully Automatic Production Line for Insulin Pen Needle

Fully Automatic Production Line for Insulin Pen Needle Featured Image
  • Fully Automatic Production Line for Insulin Pen Needle
  • Fully Automatic Production Line for Insulin Pen Needle
  • Fully Automatic Production Line for Insulin Pen Needle

Brief Introduction:

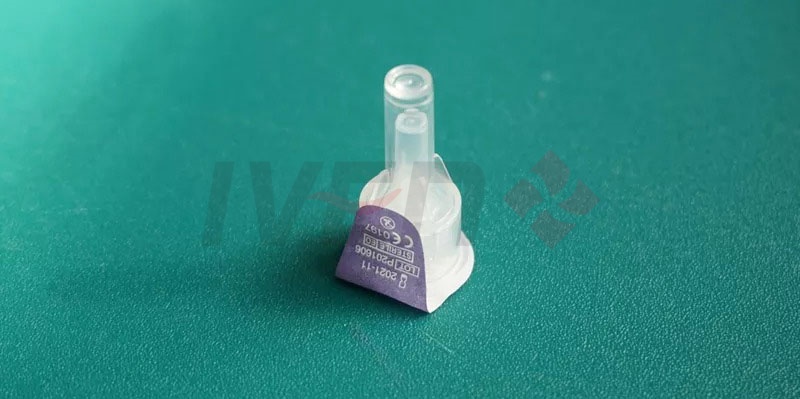

This assembly machinery is used to assemble insulin needles that are used for diabetics.


Product Detail

Product Tags

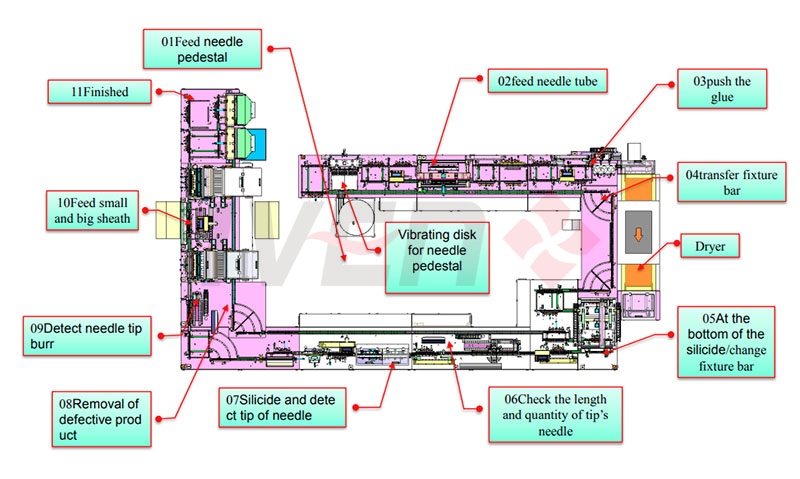

Machine Layout

fully-automatic-production-line-for-insulin-pen-needle5

Specifications

Utilization rate: ≥ 95%; Pass rate: ≥ 98%

Capacity = 24000 pcs/H

Specifications for: 29G 30G 31G 32G 33G 34G

Power: 30 kW

Air pressure: 0.6~0.8 Mpa, 1.5m³/Min

Size: L×W×H=9500×5500×2000 mm

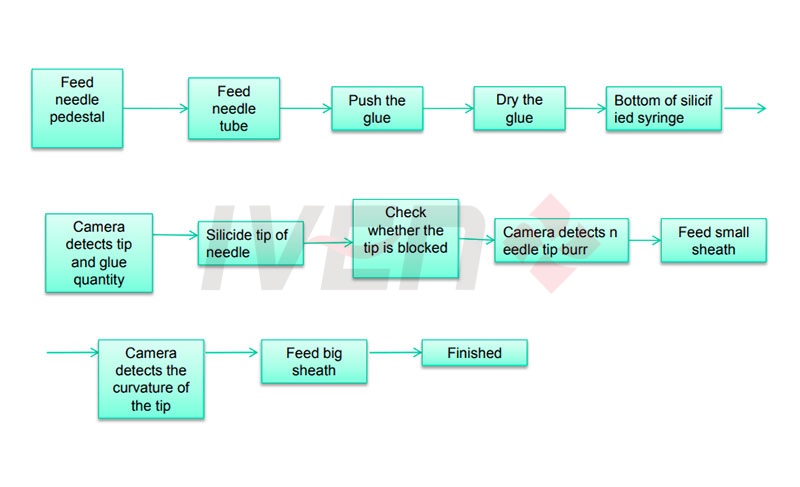

Technological Process

fully-automatic-production-line-for-insulin-pen-needle4

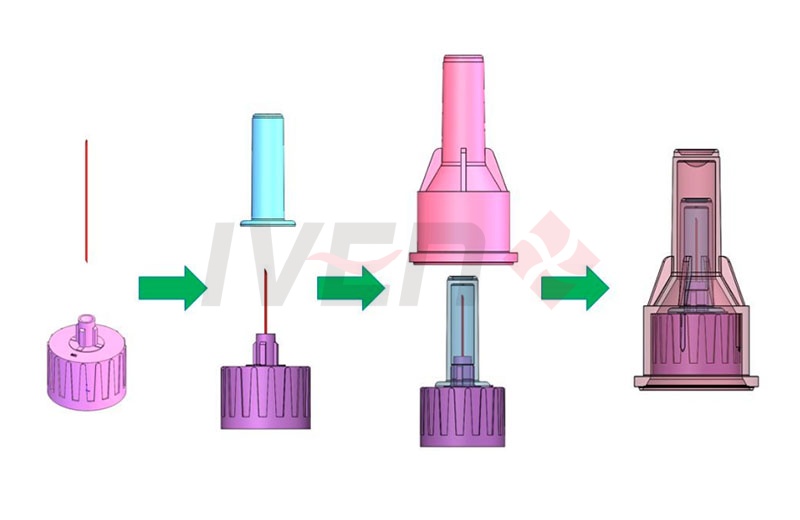

Machine Function

fully-automatic-production-line-for-insulin-pen-needle3
fully-automatic-production-line-for-insulin-pen-needle8
